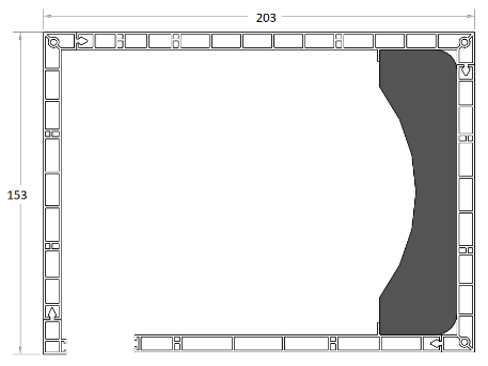

Mounted Box for All Channels 153×203 (KE153)
Mounted Box for All Channels 153×203 (KE153)
- Aluminum roller for exterior use.
- With a profile height of 153 mm.
- With insulation made of expanded polystyrene.
- Available in 120 wood shades and RAL colors.
- With a simple guide or with a screen base.
Compatible with all channels
| Box Colors |
| White |
| Renolit Shades |
| Technical Characteristics | |
| Box Height | 153mm |
| Box Width | 203mm |
| Weight/m | 2.6kg/m |
| Production Length | 6m * |
| Lifting Capacity of the Motion Mechanism | |
| Belt | 10Kg |
| Crank | 15Kg |
| Motor | 100Kg |
| Leaf Type | Plastic Sheet 9×43 | Aluminum Sheet Poly. 9×39 | Heavy Duty Extruded Sheet |
| Maximum Operational Width | 1.30m | 2.50m | 2.50m |
| Maximum Operational Height for Shaft Φ40 | 1.50m | 2.60m | 1.30m |
| Maximum Operational Height for Shaft Φ60, Electric Motor | – | 1.50m | 1.20m |
Possible Variations

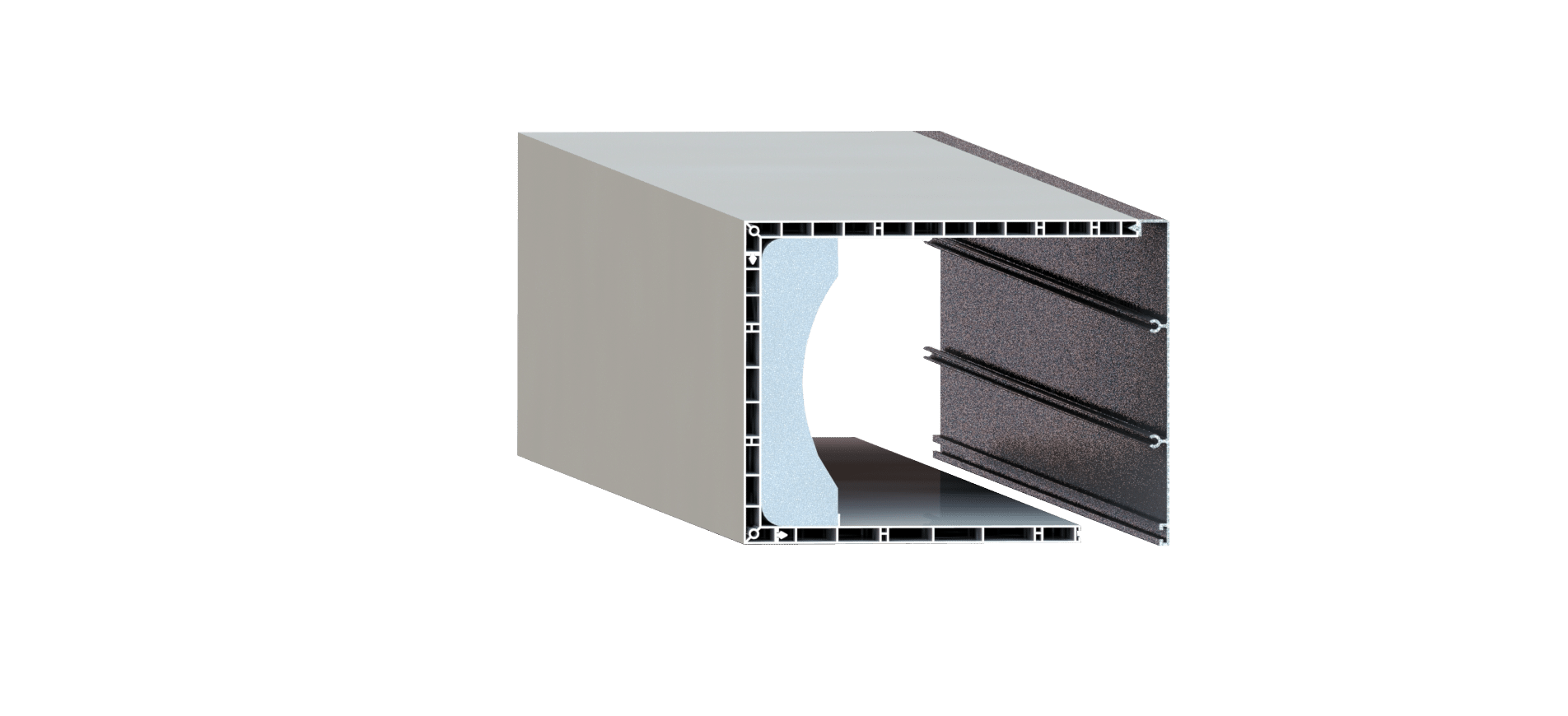

MOUNTED BOX 153×203 with aluminum fascia 150 x 203 simple width
