HYBRID roller shutter

The HYBRID roller shutter system is the result of the strategic cooperation between Aluroll and Technoplast, combining the know-how of both companies. With aluminum profiles designed on Technoplast’s roller shutter systems, HYBRID offers the elegant appearance of aluminum combined with
with the thermal performance and insulation of plastic.

The ability to be coated in any RAL color or in wood imitation, HYBRID allows for absolute harmonization with the facade, the frames or the interior space, while ensuring high energy efficiency and timeless durability.

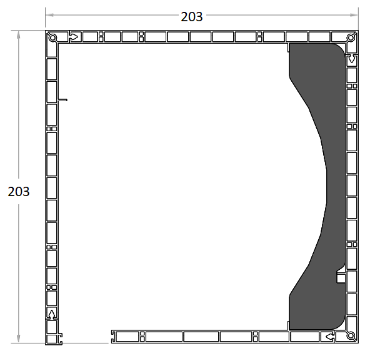

HYBRID BOX 203 x 203

TECHNICAL DATA
Box height	203mm
Box width	203mm
Box weight/m	4,80kg/m
Production length	6m *

Box colors

White

Ral hues

Elevating ability of movement mechanism
Strap	10Kg
Hand crank	15Kg
Electric motor	100Kg

Height	203mm
Width	228mm

HYBRID BOX 203 x 203 with aluminum face

Slat type	Pvc slat 9x43	Aluminum polyurethane slat 9x39	Heavy duty extruded slat	Aluminum polyurethane slat Η32 SPACE
Maximum width	1,30m	2,50m	2,50m
Maximum height with Φ40tube	2,80m	2,90m	-	2,28m
Maximum height with Φ60 tube ,electric motor	-	2,80m	2,60m	2,03m

Compatible with:

All the channels ALUMINIUM & PVC

Notes:

*Production lengths may very in large order amounts.

**All remaining colors are available by order request.

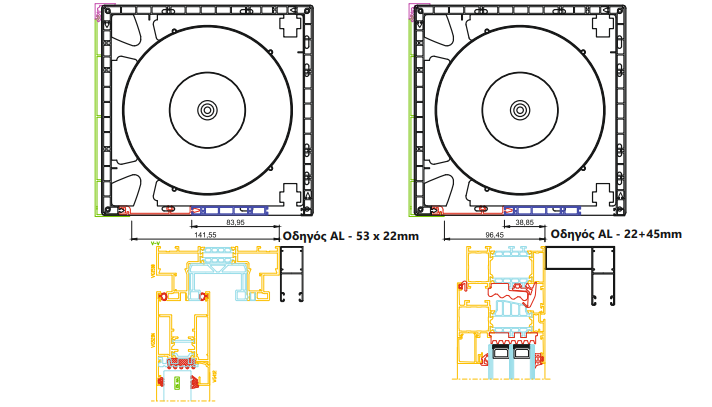

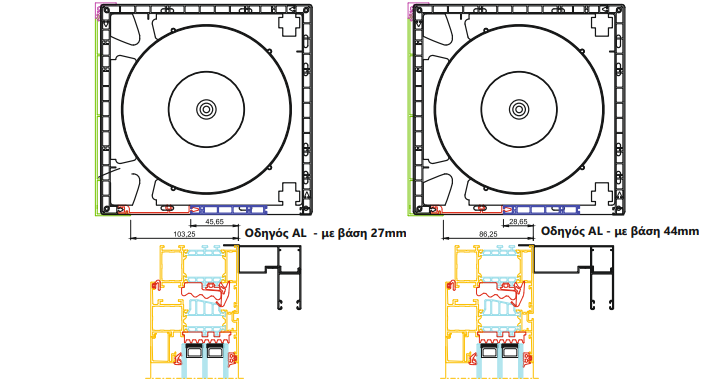

Ways to install the Hybrid 203x203 box with different guide systems and depths

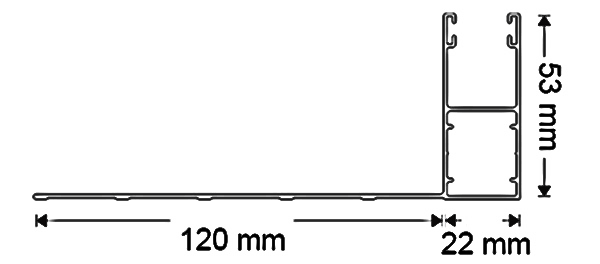

Supports the use of aluminum guide with wing
