Mounted Box for Channel Base 185.8×203

Mounted Box for Channel Base 185.8×203

• Aluminum roller for exterior use.
• With a profile height of 185.8 mm.
• With insulation made of expanded polystyrene.
• Available in 120 wood shades and RAL colors.
• With a simple guide or with a screen base.

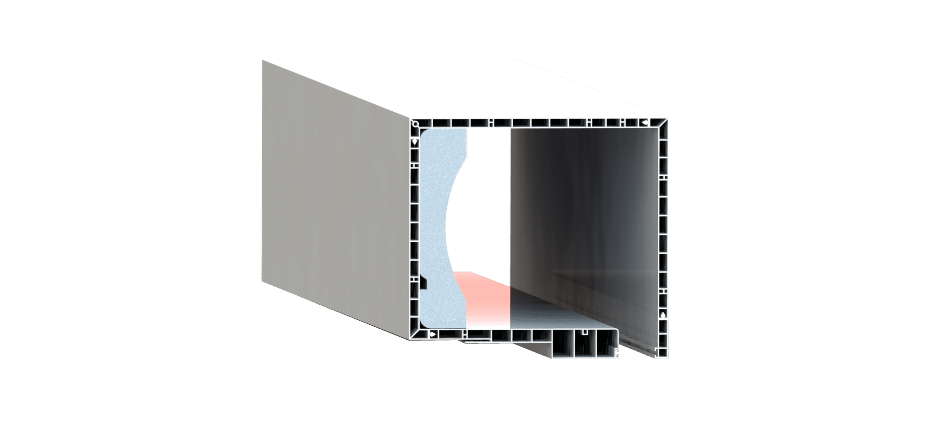

κύρια εικόνα
Box Colors
White
Renolit Shades
Technical Characteristics
Box Height 186mm
Box Width 203mm
Weight 2.8kg/m
Production Length 6m *
Patos 300
Lifting Capacity of the Motion Mechanism
Belt 10Kg
Crank 15Kg
Motor 100Kg

Leaf Type Plastic Sheet 9×43 Aluminum Sheet Poly. 9×39 Heavy Duty Extruded Sheet
Maximum Operational Width 1.30m 2.50m 2.50m
Maximum Operational Height for Shaft Φ40 2.30m 2.30m 2.10m
Maximum Operational Height for Shaft Φ60, Electric Motor – – –
Possible Variations
ΚΟΥΤΙ ΕΠΙΚΑΘΗΜΕΝΟ 203 x203 με μετώπη αλουμινίου,πομπέ203×203 aplos patos, metwpi alouminiou pompe

MOUNTED BOX 203 x 203 with aluminum fascia, Pombe 203×203 simple width

ΚΟΥΤΙ ΕΠΙΚΑΘΗΜΕΝΟ 203 x203 ,πομπέΚΟΥΤΙ ΕΠΙΚΑΘΗΜΕΝΟ 203 x 203 ,πομπέ

MOUNTED BOX 203 x 203 Pombe

ΚΟΥΤΙ ΕΠΙΚΑΘΗΜΕΝΟ 203 x203 με μετώπη αλουμινίου203×203 aplos patos, metwpi alouminiou

MOUNTED BOX 203 x 203 with aluminum fascia, 203×203 simple width

Compatible with 300

Notes:

* Production lengths vary for large order quantities.

** All other colors are available upon request.
