Mounted Box for Simple Channel 185.8×203
Mounted Box for Simple Channel 185.8×203
- Aluminum roller for exterior use.
- With a profile height of 185.8 mm.
- With insulation made of expanded polystyrene.
- Available in 120 wood shades and RAL colors.
- With a simple guide or with a screen base.
| Box Colors |
| White |
| Renolit Shades |

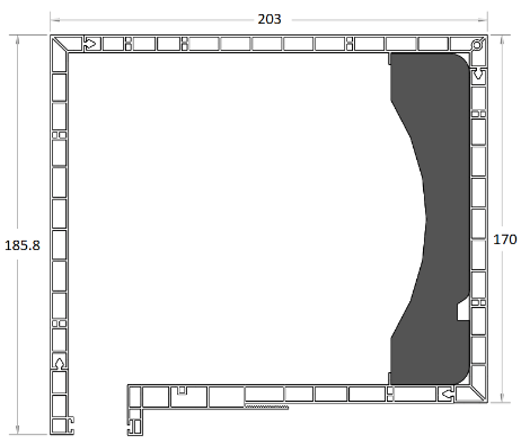

| Technical Characteristics | |
| Box Height | 186mm |
| Box Width | 203mm |
| Weight | 2.8kg/m |
| Production Length | 6m * |
| Lifting Capacity of the Motion Mechanism | |
| Belt | 10Kg |
| Crank | 15Kg |
| Motor | 100Kg |
| Leaf Type | Plastic Sheet 9×43 | Aluminum Sheet Poly. 9×39 | Heavy Duty Extruded Sheet |
| Maximum Operational Width | 1.30m | 2.50m | 2.50m |
| Maximum Operational Height for Shaft Φ40 | 2.30m | 2.30m | 2.10m |
| Maximum Operational Height for Shaft Φ60, Electric Motor | – | – | – |
Possible Variations

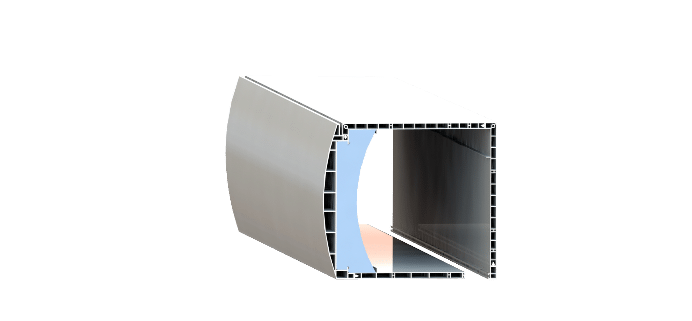

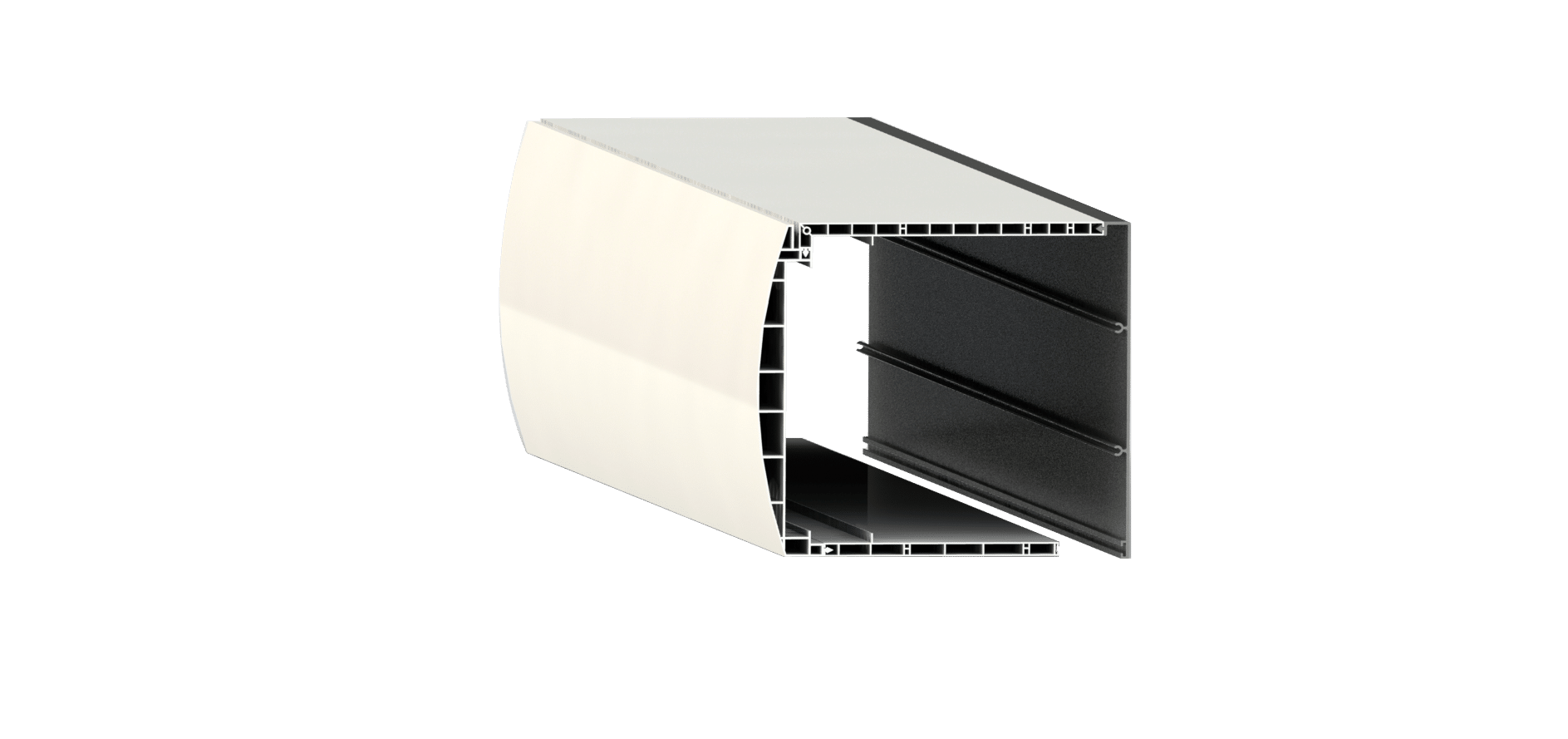

MOUNTED BOX 203 x 203 with aluminum fascia, Pombe 203 x 203 simple width
MOUNTED BOX 203 x 203 Pombe

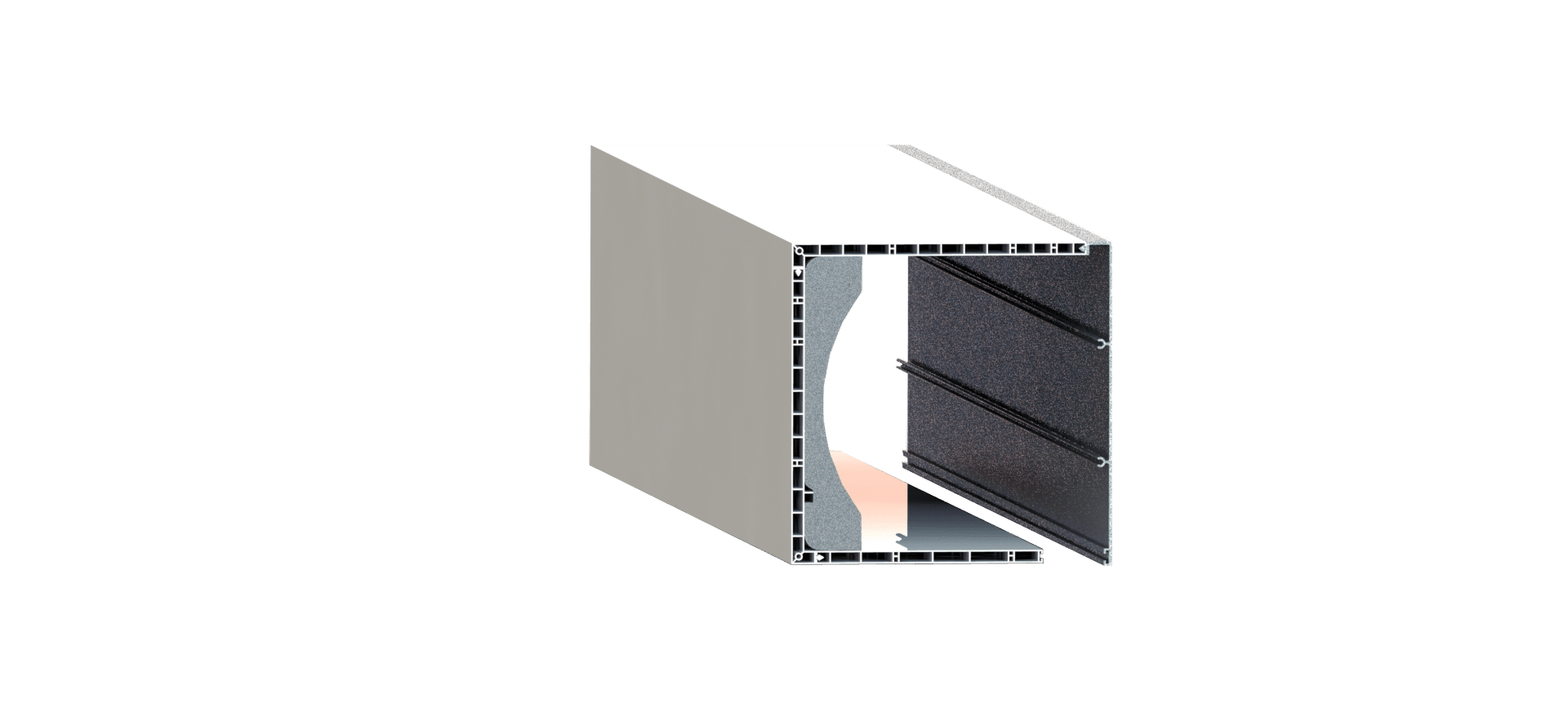

MOUNTED BOX 203 x 203 with aluminum fascia, 203 x 203 simple width
