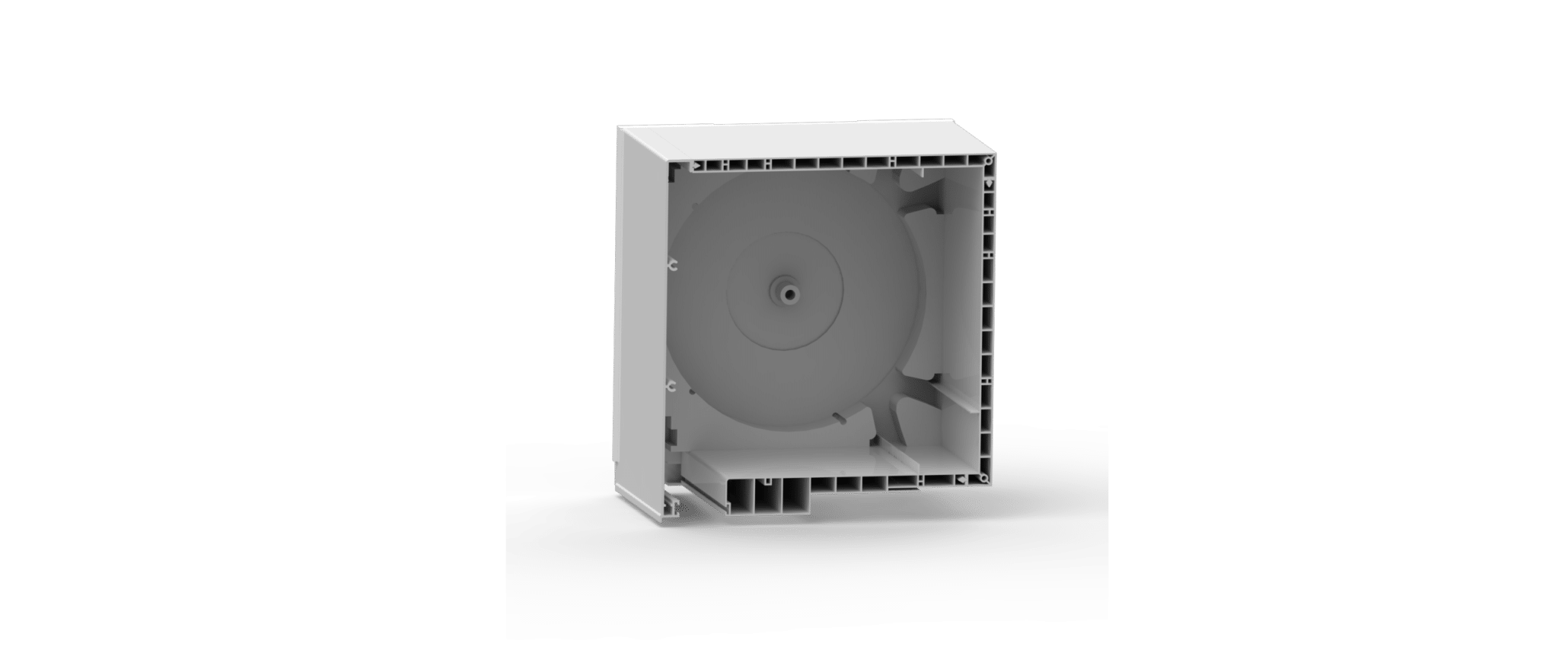

Mounted Box for Channel Base 217.8×203
Mounted Box for Channel Base 217.8×203
• Aluminum roller for exterior use.
• With a profile height of 217.8 mm.
• With insulation made of expanded polystyrene.
• Available in 120 wood shades and RAL colors.
• With a simple guide or with a screen base.
| Box Colors |
| White |
| Renolit Shades |

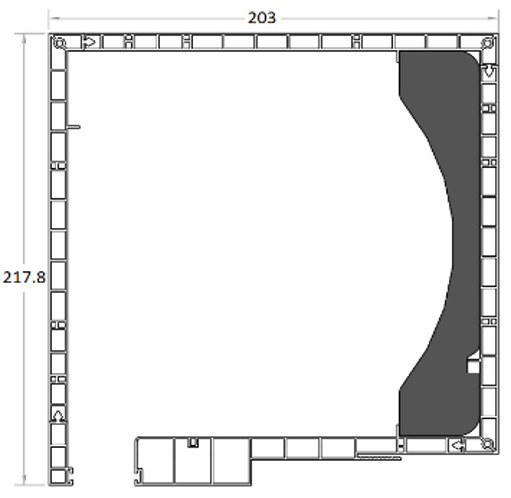

| Technical Characteristics | |
| Box Height | 218mm |
| Box Width | 203mm |
| Weight | 3.1kg/m |
| Production Length | 6m * |
| Lifting Capacity of the Motion Mechanism | |
| Belt | 10Kg |
| Crank | 15Kg |
| Motor | 100Kg |
| Leaf Type | Plastic Sheet 9×43 | Aluminum Sheet Poly. 9×39 | Heavy Duty Extruded Sheet |
| Maximum Operational Width | 1.30m | 2.50m | 2.50m |
| Maximum Operational Height for Shaft Φ40 | 2.80m | 2.90m | – |
| Maximum Operational Height for Shaft Φ60, Electric Motor | – | 2.80m | 2.60m |
Possible Variations

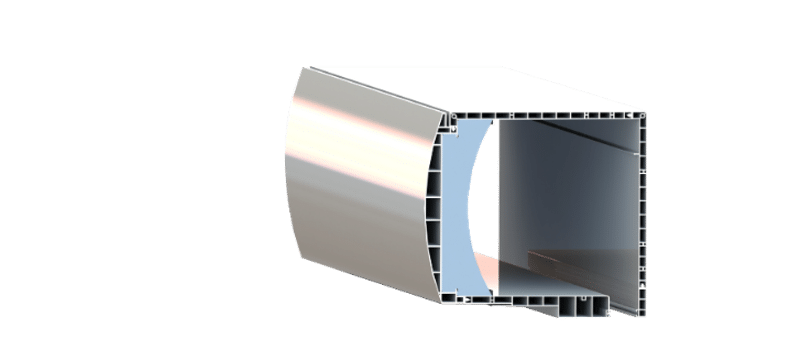

MOUNTED BOX for channel base with aluminum fascia

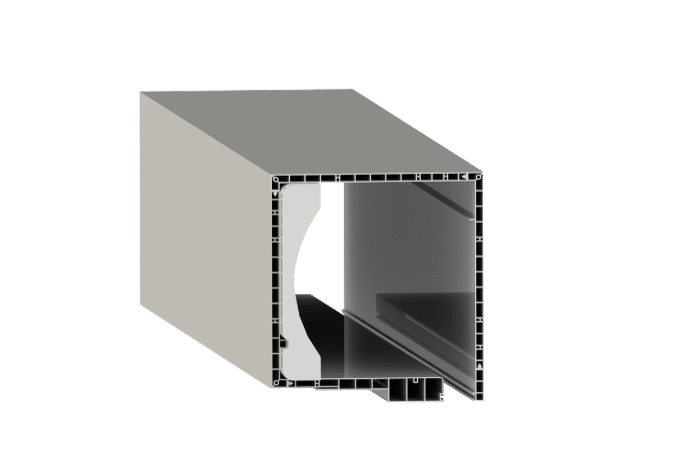

MOUNTED BOX 203 x 203 for Pombe channel base
